    ESD Plain Grid T C Fabric 65% Cotton 33% Polyester 2% Carbon Filament 4mm Grid

    Ask Lasest Price
    Brand Name : allesd
    Model Number : AF0606
    Certification : ISO/SGS
    Payment Terms : T/T
    Supply Ability : 1,500,000 meters per month
    Delivery Time : 25 working days
    Price : Negotiable
    • Product Details
    • Company Profile

    ESD Plain Grid T C Fabric 65% Cotton 33% Polyester 2% Carbon Filament 4mm Grid

    ESD Knitted Plain Grid T C Fabric 65% Cotton 33% Polyester 2% Carbon Filament 4mm Grid


    ESD Static Dissipative Fabric 4mm Grid(Checked): AF0606

    Description: Anti-static ESD Knitted T/C Fabric, 4mm Grid

    Applications: ESD protection in clean rooms, work wear

    Features:

    1) For use in manufacturing ESD garments, more comfortable and breathable than conductive silk

    2) This kind of garments, offer good resistance to static, chemicals and abrasion.

    3) It is applicable in medicals, biology, lab and etc

    4) Meets ESD standards, system resistance 106-109ohms

    Specifications:

    SpecValueTest Method
    Material65% Cotton 33% Polyester 2% Carbon
    Available ColorsAll colors available providing Pantone number
    Carbon ConfigurationGrid 4mm
    Width (cm)150
    Weight (gr/sqm)125-130
    Surface Resistivity (ohm/unit)106 ~ 108

    Friction charges (V)

    <200

    Yarn Count

    40S/2*32S/1

    Weave stylePlain

    Notice

    ESD Plain Grid T C Fabric 65% Cotton 33% Polyester 2% Carbon Filament 4mm Grid

    Machine washable up to 40degree
    Do not bleach
    Do not use acid or alkali
    Ironing at Medium temperature

    Tumble dry at low temperature

    Our ESD Plain Grid T/C Fabric

    ModelSpecYarn CountWeightDensityCharge DensityFriction Voltage
    AF0606Grid 4mm40S/2*32S/1130g/m227*21ends/cm0.8uc/m<200V
    AF0607Grid 4mm(double carbon fiber)40S/2*32S/1130g/m227*21ends/cm0.6uc/m<150V
    AF0609Grid 5mm40S/2*32S/1130g/m227*21ends/cm1.2uc/m<300V

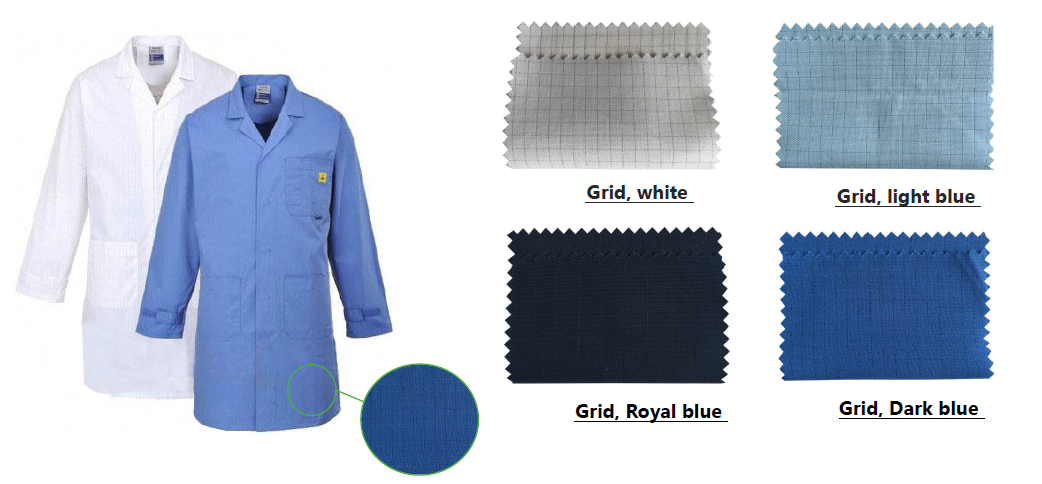

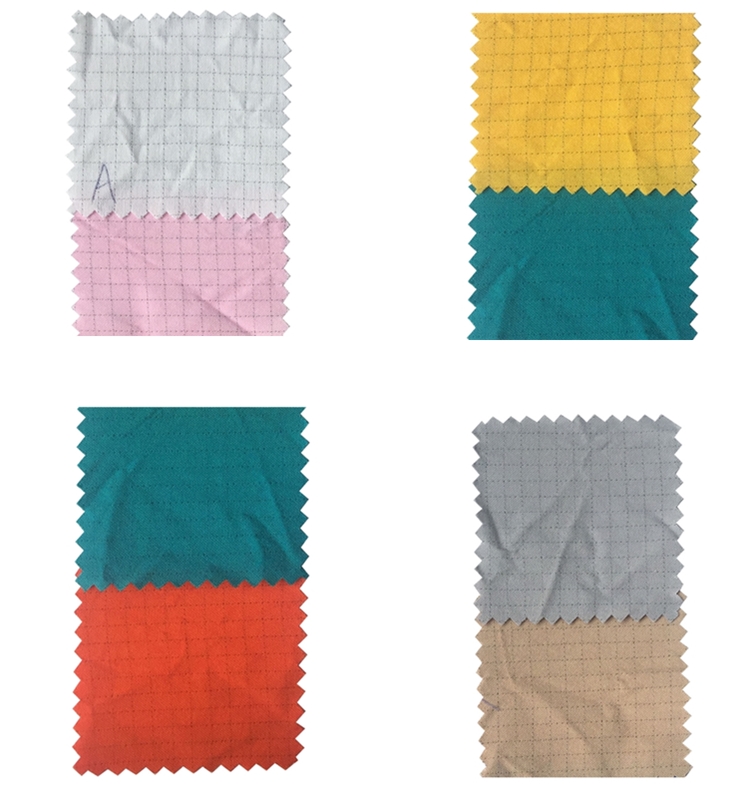

    Color Swatches

    Shooting Images

    Applications
