    Flame Resistant Blue ESD Mat Antistatic PVC Mat For Workshop Flooring

    Ask Lasest Price
    Brand Name : allesd
    Model Number : GD509
    Certification : ISO/SGS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 50,000rolls per month
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

    Flame Resistant Blue ESD Mat Antistatic PVC Mat For Workshop Flooring

    ESD Mat Flame-Resistant Antistatic PVC Mat for Workshop Flooring


    A flame-resistant ESD PVC mat is a type of mat made from PVC material that has been treated with flame-resistant chemicals and designed to prevent electrostatic discharge (ESD). This mat is commonly used in environments where both ESD protection and fire safety are critical concerns.

    Flame-resistant ESD PVC mats have a high electrical resistance, which prevents the buildup and discharge of static electricity. They are also flame-resistant, which means they will not easily catch fire or propagate a flame if exposed to a heat source. These mats are available in various sizes and can be customized to fit different work areas.

    Flame-resistant ESD PVC mats are particularly important in industries that deal with electronic components, such as electronics manufacturing, data centers, and laboratories. They provide an additional layer of protection against ESD while also reducing the risk of fire. Additionally, these mats can also help prevent accidents and injuries caused by slipping or tripping on a hard floor surface in the workplace.


    ESD Flame Retardant PVC Floor Mat
    Construction Material:PVC (VINYL)
    Color:green or customised
    Normal size(roll):1.0mx*10mx*2mm(T); 1.2mx*10mx*2mm(T) or customised
    Two layers:Static Dissipation layer + Conductive layer
    Surface:Shiny or dull or lines
    Function:Flame Retardant,Antistatic
    Feature:Environmentally friendly, tasteless, antistatic, long lasting, bending, aging resistant and tear resistant.
    Remarks:Above sizes are standard, customized size available.

    Some of the Characteristics are as follows:


    Dissipative Table Mat/Floor MatSpecificationColor
    Static Dissipation layerSurface resistance106-1091.2mx*10mx*2mm(T)

    1.0mx*10mx*2mm(T)
    Blue, Grey, Green, Black
    Friction static potential V<100
    Conductive layer (black bottom)Surface resistance≤105
    Friction static potential V<60
    Static voltage attenuation period5000 – 500V<1s
    Flame retardationGB4609-84, FV-0 (less than 10S)
    Volume resistance105-108Ωcm

    Physical performance index of Dissipative Table/Floor Mat
    No.DescriptionTest referenceResults
    1Tensile strengthGB 10403.6Mpa
    2Fracture elongationGB 1040188%
    3Tear elongationGB/T 52920.6KN/m
    4Rebound elasticity (the specimen is laminated with 6 layers of sheets)GB/T 168114%
    5Impact embrittlement temperature (no cut)GB 5470No damage
    at -25℃
    6Permanent compression change rate, 70oC*22h, compression 25%GB 10654

    17.90%

    7

    Hot air ageing

    Tensile strength change rate

    GB/T 7141

    8.00%
    Fracture elongation change rate-3.80%
    Weight loss on heating1.08%
    Remarks

    Test according to national standards: GB 1040, GB/T 529, GB/T 1671, GB 5470, GB 10654 and GB/T 7141.


    ESD anti-static flame-retardant PVC floor mats have the following features:


    Anti-static: The floor mat is made of high-resistance materials, which can effectively prevent the accumulation and discharge of static electricity, thereby protecting electronic components from static damage.

    Flame-retardant: The floor mat is made of PVC material that has been treated with flame-retardant chemicals, which can prevent flammable materials from igniting the mat and reduce the risk of fire.

    Strong wear resistance: The floor mat is made of PVC material, which has strong wear resistance and durability, and can withstand long-term use.

    Stable anti-static performance: The anti-static performance of the floor mat is stable and will not decrease over time.

    Anti-fatigue: The floor mat can relieve the fatigue caused by long-term standing and improve work efficiency.

    Easy to install: The floor mat is easy to install and can be cut and adjusted according to the size and shape of the work area to adapt to different working environments.

    In summary, ESD anti-static flame-retardant PVC floor mats have multiple features such as anti-static, flame-retardant, and wear resistance, providing reliable protection and are suitable for various industrial environments that require high standards for static electricity and fire safety. Additionally, they can also improve employee efficiency and comfort.

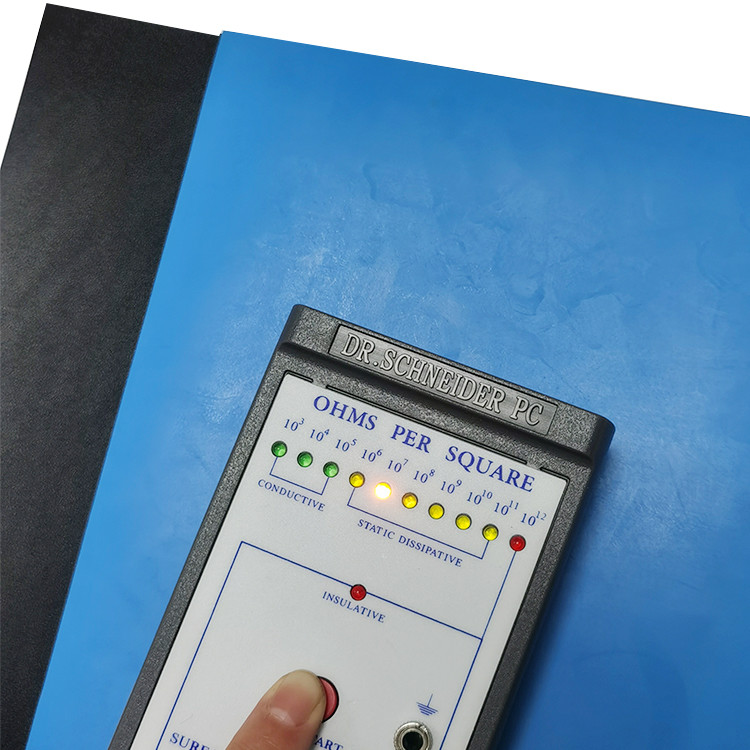

    Picture:

    Flame Resistant Blue ESD Mat Antistatic PVC Mat For Workshop Flooring

    Flame Resistant Blue ESD Mat Antistatic PVC Mat For Workshop Flooring


    Other Products we Supply

    • ESD Fabric
    • Cleanroom Apparels
    • Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs),
    • Cleanroom &ESD Chairs/Stools,
    • Cleanroom Documentation(Paper, Pen, Notebook),
    • Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove)
    • Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat),
    • ESD Package Materials(Bags, Tapes etc),
    • ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers),
    • ESD Wrist/Heel Straps/Grounding Cords.
    • Static Control Ionizing Blower/Gun/Nozzle,
    • Illuminated Magnifier,
    • Cleanroom Curtain and etc
