Wholesale White Polyester&Cotton 4mm Grid Anti-Static TC Fabric
4mm Grid Conductive Wire Red Anti Static 65%Polyester 32%Cotton
2%Carbon TC Fiber Fabric
Description:
| Red 4mm Grid Anti Static TC Fabric |
| Material | 65%polyester 33%cotton 2% Carbon Fiber |
| Color | White,Red,Blue,Gray,GRAY,Green,and etc |
| Use | ESD working clothes |
| Fabric Style | 4mm Grid or custom 2.5/5mm stripe |
| Weight (gr/sqm) | 120~150gsm |

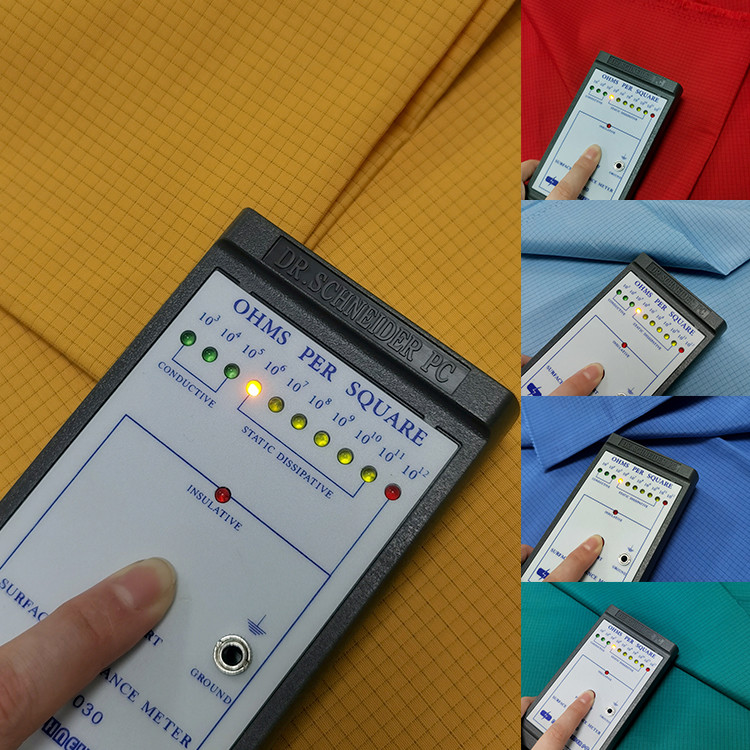

| Surface Resistivity (ohm/unit) | 10e6 ~ 10e8 ohm/unit |
| Friction charges (V) | <200V |
Number of yarns (denier)
Warp
Weft |
100d
100d |
| Weave style | Twill 1/2 |
| Air permeability (cc/cm²/sec) | 30 |
| Recommended Class Of Cleanroom | Class 1000~10000 |
Description:
Textile materials are electrical insulator materials, with high
specific resistance, especially synthetic fibers such as polyester,
acrylic and chlorine fibers with low moisture absorption.
Therefore, in the process of textile processing, due to the close
contact and friction between fibers or between fibers and parts.
Cause the transfer of charge on the surface of the object,
resulting in static electricity. The fibers with the same charge
repel each other, and the fibers with different charges attract the
machine parts. As a result, the sliver is hairy, the yarn hairiness
increases, the winding molding is poor, the fiber sticks to the
machine parts, the yarn breakage increases, and the dispersed strip
shadow is formed on the cloth surface. After clothing is charged, a
large amount of dust is adsorbed, which is easy to stain, and
clothing and human body, clothing and clothing will also entangle
or produce electric sparks. Therefore, electrostatic interference
affects the smooth progress of processing, the quality of products
and the wearing performance of fabrics. When the electrostatic
phenomenon is serious, the static voltage is as high as thousands
of volts, which will produce sparks due to discharge, cause fire
and cause serious consequences.
Features:
1) Carbon Fiber as known as "conductive wire", it adopts special
polyester filament and high-quality gray conductive wire made in
Japan
yarn
2) Fully comply with ESD standards. The resistance range of 2%
carbon fiber system is 10e6-10e8 ohms
3) Excellent conductivity, available in sky blue, dark blue, pink,
white, yellow, green and gray.
4) Recommended for pharmaceutical industry, medical devices, food
processing and conference clean rooms.
Applications:
for antistaitc clothing, workwear, and other garment accessories,
such as ESD Anti-Static bag, ESD Anti-Static cap, ESD Anti-Static
Facemask, ESD Anti-Static Shoe cover and so on to protect sensitive
components from harmful static charges.
