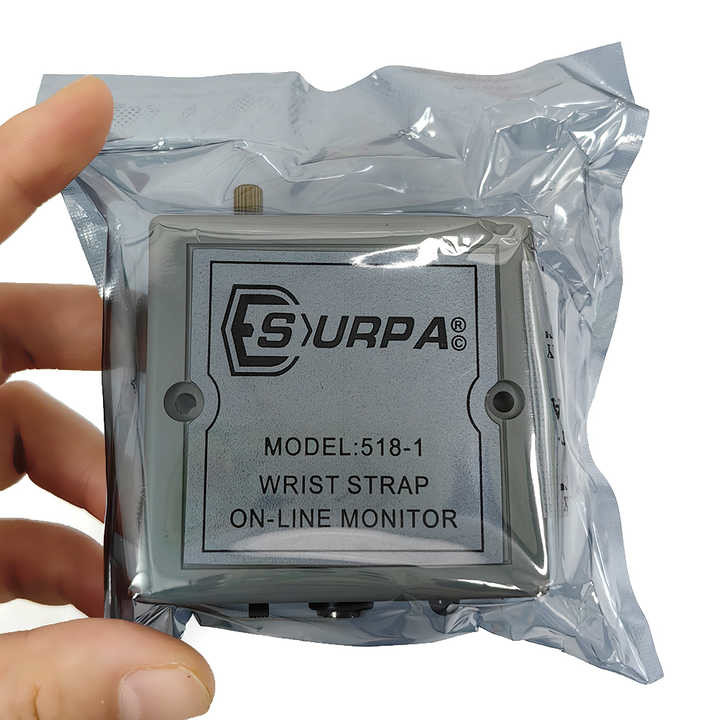

Anti Static Wrist Strap Online Monitoring Instrument SURPA 518-1
Static Ring Grounding Automatic Alarm Tester
The 518-1 Static Ring Grounding Automatic Alarm Tester is a
specialized device used for testing the functionality and grounding
effectiveness of static rings (also known as ESD wrist straps).
These wrist straps are commonly used in environments where
electrostatic discharge (ESD) protection is critical, such as
electronics manufacturing, cleanrooms, and laboratories.
The wrist strap is a device specifically designed to solve
thisproblem.
It draws static from the human body continuously and has an instant
warning with lamp and alarm to warn the user should the wrist strap
fails or the grounding is disconnected.
| Model | 518-1 9V DC |
| Distinguish: | 518-1 can only detect 1 wrist strap, and 518-2 can detect 2 wrist
strapt bands. |
| Material: | Polystyrene |
| DiImension: | 67x60x29 ( mm ) |
| Weight: | 60gm ( not includingpower supply adaptor ) |
| Input: | Input |
| Feature: | Electronic Monitoringwrist Strap |
| Application: | Construction Industry |
Features:
Automatic Alarm Function:
The tester is equipped with an automatic alarm system that alerts
users if a static ring (wrist strap) fails the test. This ensures
immediate feedback and helps maintain ESD safety standards.
The alarm can be visual (e.g., LED indicators) or audible (e.g., a
beep), depending on the model.
Grounding Test:
The device tests the grounding continuity of the wrist strap to
ensure it is properly connected to a grounding point and
effectively dissipates static electricity.
It checks for proper electrical resistance, which is critical for
ESD protection (typically within the range of 1 megohm to 10
megohms).
Static Ring Testing:
The tester verifies the functionality of the static ring itself,
ensuring that the conductive components (e.g., the band and
grounding cord) are intact and working correctly.
User-Friendly Design:
The device is designed for ease of use, often featuring a simple
interface with buttons or switches to initiate testing.
It may include a testing pad or plate where the user places their
wrist strap for evaluation.
Compact and Portable:
The 518-1 tester is typically compact and lightweight, making it
easy to transport and use in various locations, such as
workstations or entry points to ESD-protected areas (EPAs).
How It Works:
The user connects their static ring (wrist strap) to the tester,
either by placing it on a testing pad or attaching it to a
grounding point on the device.
The tester measures the electrical resistance of the wrist strap
and checks for proper grounding continuity.
If the wrist strap passes the test, the device indicates a
successful result (e.g., a green LED light).
If the wrist strap fails (e.g., due to a broken connection or
improper grounding), the device triggers an automatic alarm (e.g.,
a red LED light or audible beep) to alert the user.
Applications:
Electronics Manufacturing: Ensures workers' wrist straps are
functioning correctly to protect sensitive components from ESD
damage.
Cleanrooms: Used in environments where contamination control and
ESD protection are critical.
Laboratories: Verifies the effectiveness of ESD protection measures
when handling sensitive instruments or materials.
Quality Control: Regularly testing wrist straps as part of an ESD
control program to maintain compliance with safety standards.
Benefits:
Enhanced ESD Safety: Ensures that static rings are functioning
properly, reducing the risk of electrostatic discharge.
Immediate Feedback: The automatic alarm provides quick and clear
results, allowing for prompt corrective action.
Compliance: Helps organizations meet ESD control standards and
maintain a safe working environment.
More picture :
